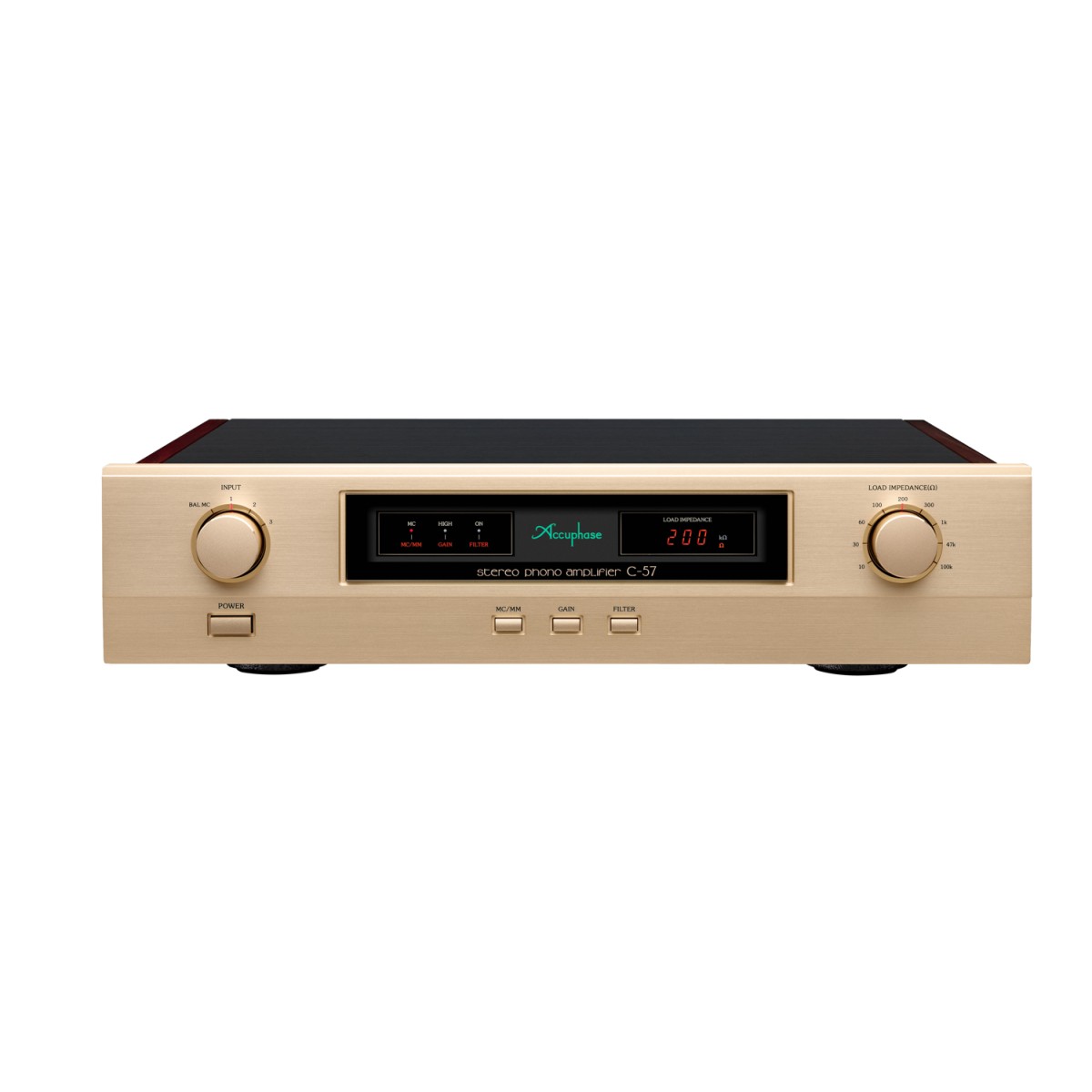

C-57 Phono Equalizer-amplifier

Description

STEREO PHONO AMPLIFIER C-57

The C-57’s configuration provides a fully balanced phono equalizer from input to output. The combination of a high precision equalizer amplifier and a dedicated MC/MM head amplifier fully optimized for the cartridge characteristics creates a highly accurate phono equalizer. As a first, the MC head amplifier uses ANCC to further improve noise performance. Dedicated MC phono balanced inputs allow for balanced connections with record players. The C-57 combines only the best technological advances to extract the full potential of analog discs.

Additional informations

• MC head amplifier with ANCC
• Low-noise fully balanced configuration
• One dedicated balanced MC phono input and three sets of regular phono inputs
• Separate settings memory for each input position

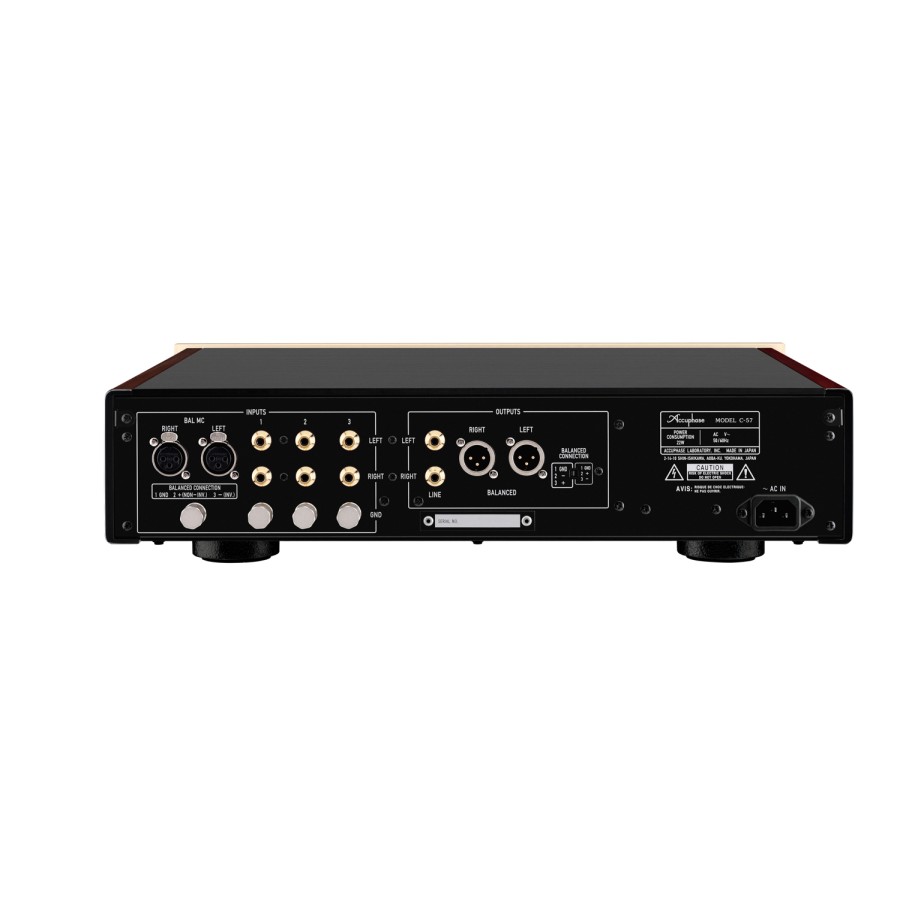

• Balanced and line level output connectors
• Polarity selector for balanced output

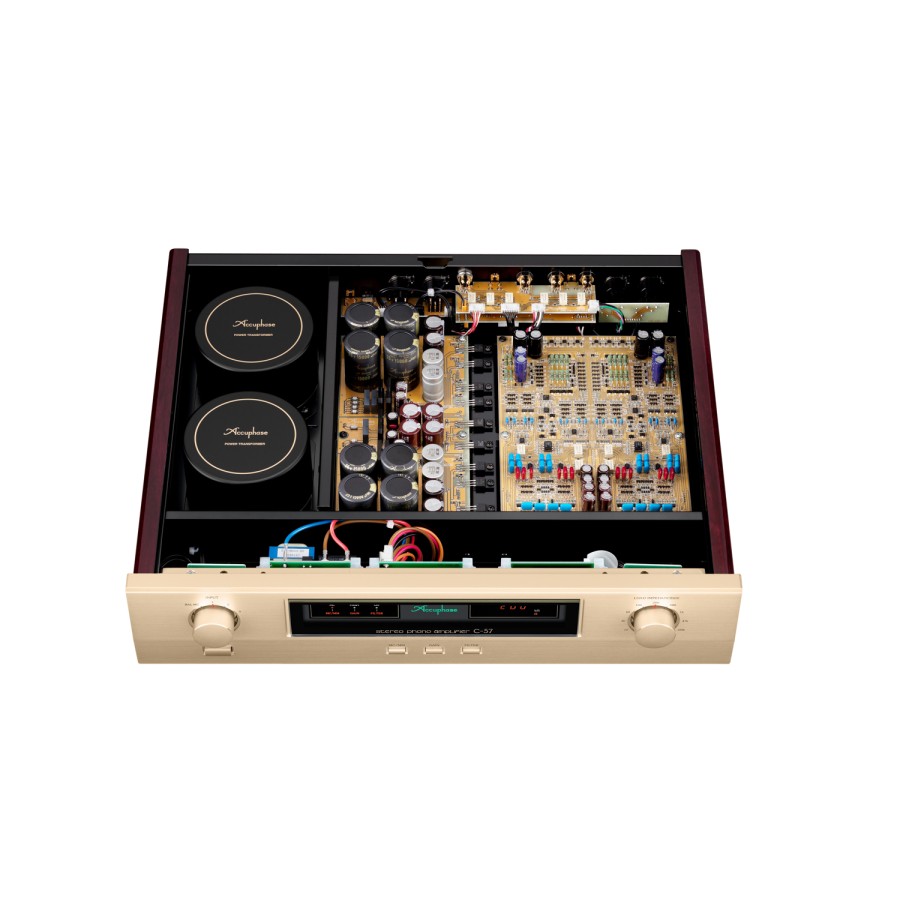

• Monaural construction layout
• Low-noise regulated power supply circuitry unaffected by load fluctuations
• High-accuracy phono equalizer with RIAA deviation of only ±0.3 dB
• Load impedance settings for seven MC and three MM phono cartridge types
• MC: 10/30/60/100/200/300/1k ohms
• MM: 1/47/100 kilohms
• 7-segment load impedance LED display
• Gain selector for low-output phono cartridges
• Subsonic filter ON/OFF selector
• Disc equalizer assembly using glass fiber cloth fluorocarbon resin PCB with low dielectric constant and low losses
• High-capacitance 25 V/15,000 μF filter capacitors
• Toroidal power transformer
• Aluminum top plate with hairline finish
• Elegant side panels with natural wood grain finish
• High-carbon cast iron insulators for superior vibration damping
